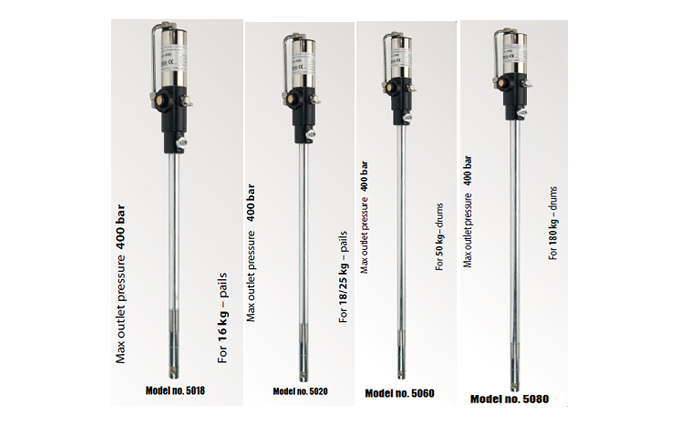

Pneumatic pumps for the dispensing of grease at short and medium distances or for high pressure lubrication. (50:1 Compression ratio)

PNEUMATIC GREASE PUMPS Model-5018
MODEL NO. 5018 5020 5060 5080
COMPRESSED AIR SUPPLY PRESSURE MIN 2 - MAX 8 BAR
COMPRESSION RATION 50:1
OUTLET PRESSURE 400 BAR
DELIVERY 2900 G/MIN
CONNECTION COMPRESSED AIR 1/4" BSP (F)
CONNECTION LUBRICANT OUTLET 1/4" BSP (M)
MAX AIR CONSUMPTION WITH 8 BAR PRESSURE 78 L/MIN
LENGTH SUCTION TUBE 335 MM 450 MM 750 MM 950 MM
DIAMETER SUCTION TUBE 28 MM 28 MM 28 MM 28 MM
DIMENSIONS LXWXH (MM) 95X95X690 95X95X780 95X95X1005 95X95X1250
SUITABLE FOR PAILS / DRUMS OF 16 KG 18-25 KG 50 KG 180 KG
WEIGHT 3.8 KG 4.2 KG 5 KG 5.6 KG

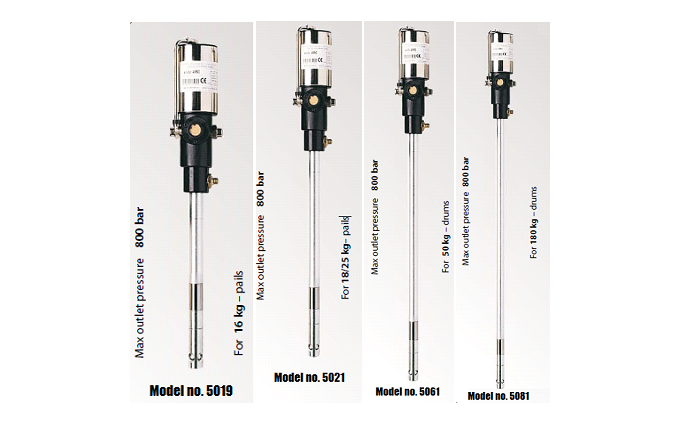

Pneumatic pumps for the dispensing of grease at long distances or for high pressure lubrication. (100:1 Compression ratio)

pneumatic grease pumps model-5019
MODEL NO. 5019 5021 5061 5081
COMPRESSED AIR SUPPLY PRESSURE MIN 2 - MAX 8 BAR
COMPRESSION RATION 100:1
OUTLET PRESSURE 800 BAR
DELIVERY 2700 G/MIN
CONNECTION COMPRESSED AIR 1/4" BSP (F)
CONNECTION LUBRICANT OUTLET 1/4" BSP (M)
MAX AIR CONSUMPTION WITH 8 BAR PRESSURE 110 L/MIN
LENGTH SUCTION TUBE 335 MM 450 MM 750 MM 950 MM
DIAMETER SUCTION TUBE 28 MM
DIMENSIONS LXWXH (MM) 95X95X690 95X95X780 95X95X1005 95X95X1250
SUITABLE FOR PAILS / DRUMS OF 16 KG 18-25 KG 50 KG 180 KG
WEIGHT 3.8 KG 4.2 KG 5 KG 5.6 KG
