AIR HOSE REELS FOR COMPRESSED AIR, SERIES 2000 (ENCLOSED MODELS) & SERIES 3000 (STAND MODELS)

This series includes a range of enclosed hose reels & stand hose reels designed to be used in those sectors that due to environmental conditions, technical or aesthetic reasons require enclosed hose reel application.

Automatic rewind, spring-driven hose reel, with sheet metal enclosure and pivoting wall bracket, suitable for the use with compressed air and water (temperature range : 10 o C - +60 o C) and for hoses of sizes see page no. 12345 with max. Length of 15 m. Inlet connection air : ¼” BSP. Max working pressure: 20 bar.

Application

  • General Industrial Applications Like Fabrication Shop for Grinders,
  • Vehicle Assembly Line
  • Manufacturing Plants & Facilities where Pneumatic tools are using
  • Maintenance, Repair & Garage workshop.
  • Automobiles, Electronics Industry, Transformers Manufacturers and many more…

Design, Structure & Specification

  • Steel Brackets & Dual Stand hose reel with space saving design facilitates workplace organization
  • Suitable & easy to install at wall, floor, vehicle & Ceiling
  • Closed Type Air Hose Reel with high quality and compact design.
  • Easy to Install by 1person/1self due to its light weight.
  • Suitable for wide range of uses. (Optional 180º Swivel bracket for left and right Rotation)
  • Excellent durability install with strong and high quality coil spring
  • Special spring made of SS, Moulded & metalic ratchet
  • Multi-position lock ratchet mechanism secures hose at desired length
  • Colour : Powder Coating as Std - Blue Colour ( Available in other colour as per customer requirements)

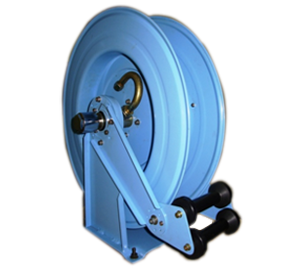

AIR HOSE REEL STAND

AIR HOSE REEL SERIES 3000 (STAND MODELS)

Benefits

  • This Closed Model hose reels designed to be used in those industry that due to environmental conditions, technical reasons require closed hose reel application.
  • With the Spring Rewind hose reel, hose rewinding is quick and safe, for a clean workplace. This protects against wear and possible damages of the hoses.
  • User will able to work in a clean and tidy place with all safety

Standard Colour Available: RED, BLUE, YELLOW

Available Hose reel Tube specifications
Tube Size Tube Material Tube Length(MTR) Maximum W/Pressure Maximum Temperature Rewind Type Suitable to Installation
ID Ø5 Poly-Urethane 4.5MTR-30 MTR 10㎏ f / cm 2 40oC Spring Wall, Ceiling,Floor
ID Ø12 PU - Braided 4.5MTR-30 MTR 20㎏ f / cm 2 60oC Spring Wall, Ceiling,Floor

SERIES 2000 (ENCLOSED MODELS)

Product Code HOSE SIZE MAX. TUBE LENGTH MAX PRESSURE MOUNTING OPTION MOC
- ID MM OD MM - - HOOK CEILING -
SP-2AHR-2440 5.5 8 8 MTR 10 KG YES YES C.S
SP-2AHR-2445 5.5 8 15 MTR 10 KG YES YES C.S
SP-2AHR-2450 5.5 8 20 MTR 10 KG YES YES C.S
SP-2AHR-2455 5.5 8 25 MTR 10 KG YES YES C.S
SP-2AHR-2460 8 12 4.5 MTR 10 KG YES YES C.S
SP-2AHR-2465 8 12 8 MTR 10 KG YES YES C.S
SP-2AHR-2470 8 12 10 MTR 10 KG YES YES C.S
SP-2AHR-2475 8 12 10 MTR 15 KG YES YES C.S
SP-2AHR-2480 8 12 20 MTR 10 KG YES YES C.S
SP-2AHR-2485 8 12 25 MTR 10 KG YES YES C.S
SP-2AHR-2585 10 14 10 MTR 8 KG YES YES C.S
SP-2AHR-2590 10 14 15 MTR 8 KG YES YES C.S
SP-2AHR-2595 10 14 20 MTR 8 KG YES YES C.S
SP-2AHR-2600 12 16 10 MTR 8 KG YES YES C.S

SERIES 3000 (STAND MODELS)

Product Code HOSE SIZE MAX. TUBE LENGTH MAX PRESSURE MOUNTING OPTION MOC
- ID MM OD MM - - HOOK CEILING -
SP-3AHR-2390 5.5 8 25 MTR 10 KG YES YES C.S
SP-3AHR-2395 8 12 15 MTR 10 KG YES YES C.S
SP-3AHR-2400 8 12 20 MTR 10 KG YES YES C.S
SP-3AHR-2405 8 12 25 MTR 10 KG YES YES C.S
SP-3AHR-2410 10 14 10 MTR 8 KG YES YES C.S
SP-3AHR-2415 10 14 15 MTR 08 KG YES YES C.S
SP-3AHR-2420 10 14 20 MTR 8 KG YES YES C.S
SP-3AHR-2425 12 16 10 MTR 8 KG YES YES C.S
SP-3AHR-2430 12 16 15 MTR 8 KG YES YES C.S
SP-3AHR-2435 12 16 20 MTR 8 KG YES YES C.S
