90 ̊ – high pressure swivel joints in galvanized steel for the use with powder coated hose reel models for hoses up to ½”.
Model no. 10050
10050 Recommended for high pressure application with grease.
Model no. 10051
Recommended for usual pressure applications with grease or oils (this is the standard swivel joint mounted on all powder coated steel hose reels for the use with grease up to ½”).
Model no. 10052
Recommended for applications with mineral oils and compressed air (this is the standard swivel joint mounted on all powder coated steel hose reels for the use with oils up to ½”).
Model no. 10053
Recommended for applications with glycol and brake fluid.
| MODEL NO | Connection Threads | Max Working Pressure | Max Temperature | Internal Dia Inlet Swivel Joint |
| 10050 | 1/4" BSP (M) | 900 BAR | 60 ̊ C | 3 MM |
| 10051 | 1/2" BSP (M) | 600 BAR | 60 ̊ C | 10 MM |
| 10052 | 1/2" BSP (M) | 200 BAR | 60 ̊ C | 12 MM |
| 10053 | 1/2" BSP (M) | 200 BAR | 150 ̊ C | 10 MM |
90 ̊- high pressure swivel joints in galvanized steel for the use with powder coated hose reel models for hoses up to 1”
| MODEL NO | Connection Threads | Max Working Pressure | Max Temperature | Internal Dia Inlet Swivel Joint |
| 10069 | 1" BSP (M) | 100 BAR | 100 ̊ C | 20 MM |
| 10079 | 1" BSP (M) | 200 BAR | 100 ̊ C | 20 MM |
Straight high pressure swivel joint in galvanized steel. Recommended for high pressure applications with fluid lubricants.
| MODEL NO | Connection Threads | Max Working Pressure | Max Temperature | Internal Dia Inlet Swivel Joint |
| 10058 | 3/8" BSP(M) - 3/4" BSP (M) | 700 BAR | 1050 BAR | 60 ̊ C |
Swivel joint, 90 ̊ type with ball valve, self – lubricating. Body in galvanized steel, on demand also in stainless steel SS304. Connections (BSP): inlet F – outlet F.
| MODEL NO | Connection Threads | Max Static Pressure | Max Dynamic PRESSURE | Max Flow Rate |
| 7696 | 1/2" BSP (M-F) | 360 BAR | 220 BAR | 80 L/MIN |
| 7697 | 3/4" BSP (M-F) | 310 BAR | 200 BAR | 120 L/MIN |
| 7698 | 1" BSP (M-F) | 280 BAR | 150 BAR | 150 L/MIN |
| 7699 | 1 1/4" BSP (M-F) | 250 BAR | 150 BAR | 200 L/MIN |
Straight low pressure swivel joints in brass / free cutting steel. Recommended for applications with oils, diesel and compressed air.
| MODEL NO | Connection Threads | Max Working Pressure | Max Temperature | Internal Dia Inlet Swivel Joint |
| 3107/34 | 3/4" BSP (M) - 1" BSP (F) | 20 BAR | 60 ̊ C | 20 MM |
| 3107/35 | 3/4" BSP (M) - 1" BSP (M) | 20 BAR | 60 ̊ C | 20 MM |
| 3107/09 | 1" BSP (M) - 1" BSP (M) | 20 BAR | 60 ̊ C | 20 MM |
| 3107/10 | 1" BSP (M) - 1" BSP (F) | 20 BAR | 60 ̊ C | 20 MM |
| 3107/11 | 1 1/4" BSP (M) - 1" BSP (M) | 20 BAR | 60 ̊ C | 20 MM |

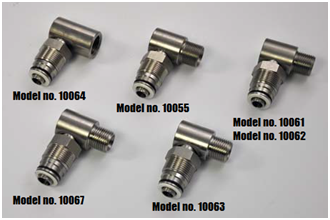

90 ̊ high pressure swivel joints in stainless steel for the use with hose reel models for hoses up to ½”.
Recommended for applications with water, glycol, other fluids compatible with this type of steel and compressed air.
The standard swivel joint mounted on all stainless steel hose reels in ½”.
| MODEL NO | Connection Threads | Max Working Pressure | Max Temperature | Internal Dia Inlet Swivel Joint | MATERIAL SWIVEL JOINT BODY |
| 10055 | M 22X 1.5 | 200 BAR | 150 ̊ C | 10 MM | STAINLESS STEEL 304 |
| 10061 | 1/2" BSP (M) | 400 BAR | 200 ̊ C | 10 MM | STAINLESS STEEL 304 |
| 10062 | 1/2" BSP (M) | 400 BAR | 200 ̊ C | 10 MM | STAINLESS STEEL 304 |
| 10063 | 1/2" BSP (M) | 200 BAR | 150 ̊ C | 10 MM | STAINLESS STEEL 304 |
| 10064 | 1/2" BSP (M) | 200 BAR | 150 ̊ C | 10 MM | STAINLESS STEEL 304 |
| 10066 | 1/2" BSP (M) | 600 BAR | 200 ̊ C | 10 MM | STAINLESS STEEL 304 |
| 10067 | 1/2" BSP (M) | 200 BAR | 150 ̊ C | 12 MM | STAINLESS STEEL 304 |
90 ̊ high pressure swivel joints in stainless steel for the use with hose reel models for hoses up to 1”.
Recommended for applications with water, glycol, other fluids compatible with this type of steel and compressed air.
The standard swivel joint mounted on all stainless steel hose reels in 1”.
| MODEL NO | Connection Threads | Max Working Pressure | Max Temperature | Internal Dia Inlet Swivel Joint | MATERIAL SWIVEL JOINT BODY |
| 10086 | 1" BSP (M) | 100 BAR | 100 ̊ C | 20 MM | STAINLESS STEEL 304 |
| 10087 | 1" BSP (M) | 200 BAR | 100 ̊ C | 22 MM | STAINLESS STEEL 304 |
| 10081 | 1" BSP (M) | 200 BAR | 100 ̊ C | 22 MM | STAINLESS STEEL 304 |
Low pressure swivel joints, suitable for hose reels in 1’ ¼” and 1’ ½”, with fixed fluid shaft and swivelling support, longneck assembly and hose tail connections dia 33 mm and dia 38 mm
| MODEL NO | Connection Threads | Max Working Pressure | Max Temperature | Internal Dia Inlet Swivel Joint | MATERIAL SWIVEL JOINT BODY |
| 10082 | 1'1/2" BSP (M) | 10 BAR | 100 ̊ C | 26 MM | STAINLESS STEEL 304 |
| 10083 | 1'1/2" BSP (M) | 10 BAR | 100 ̊ C | 33 MM | STAINLESS STEEL 304 |
